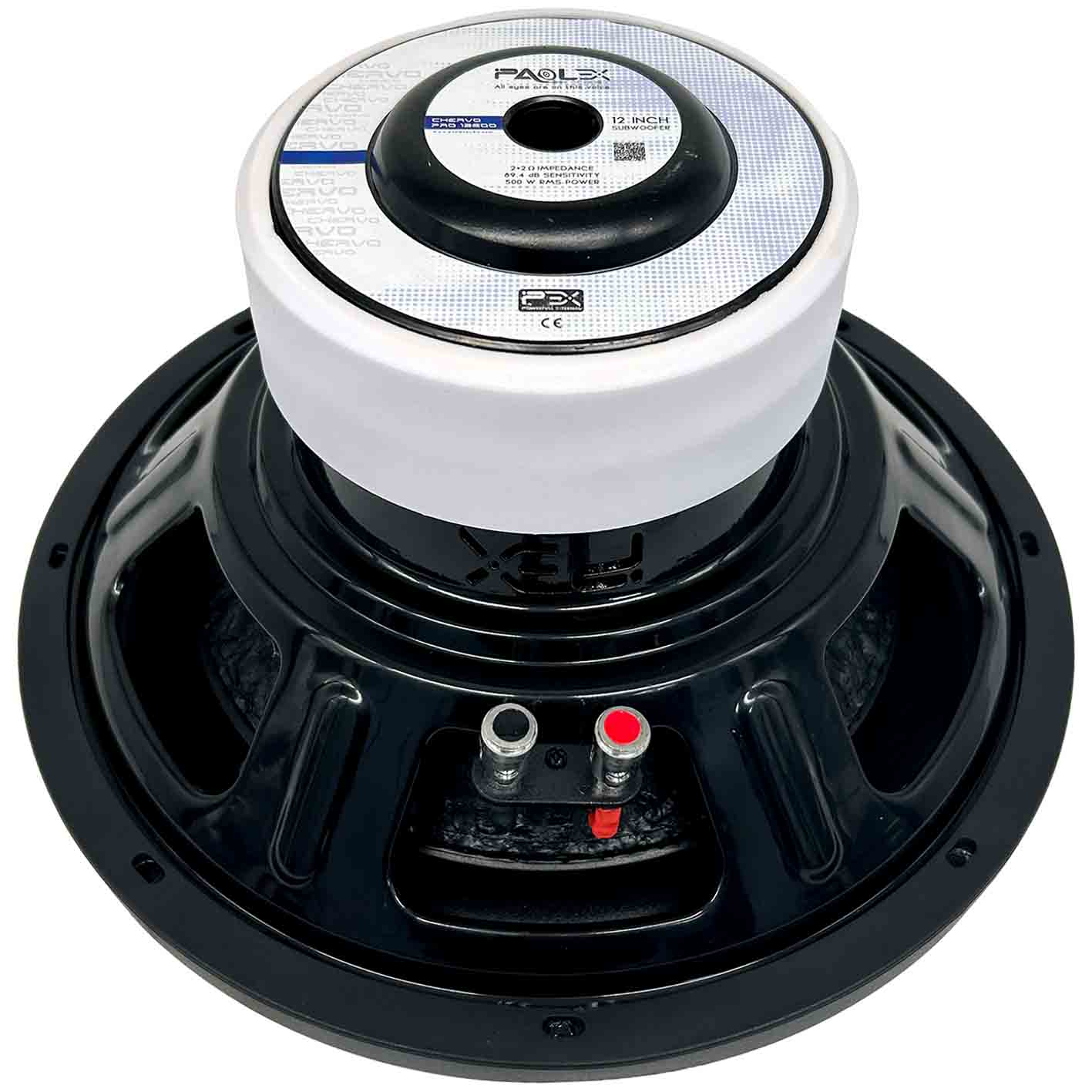

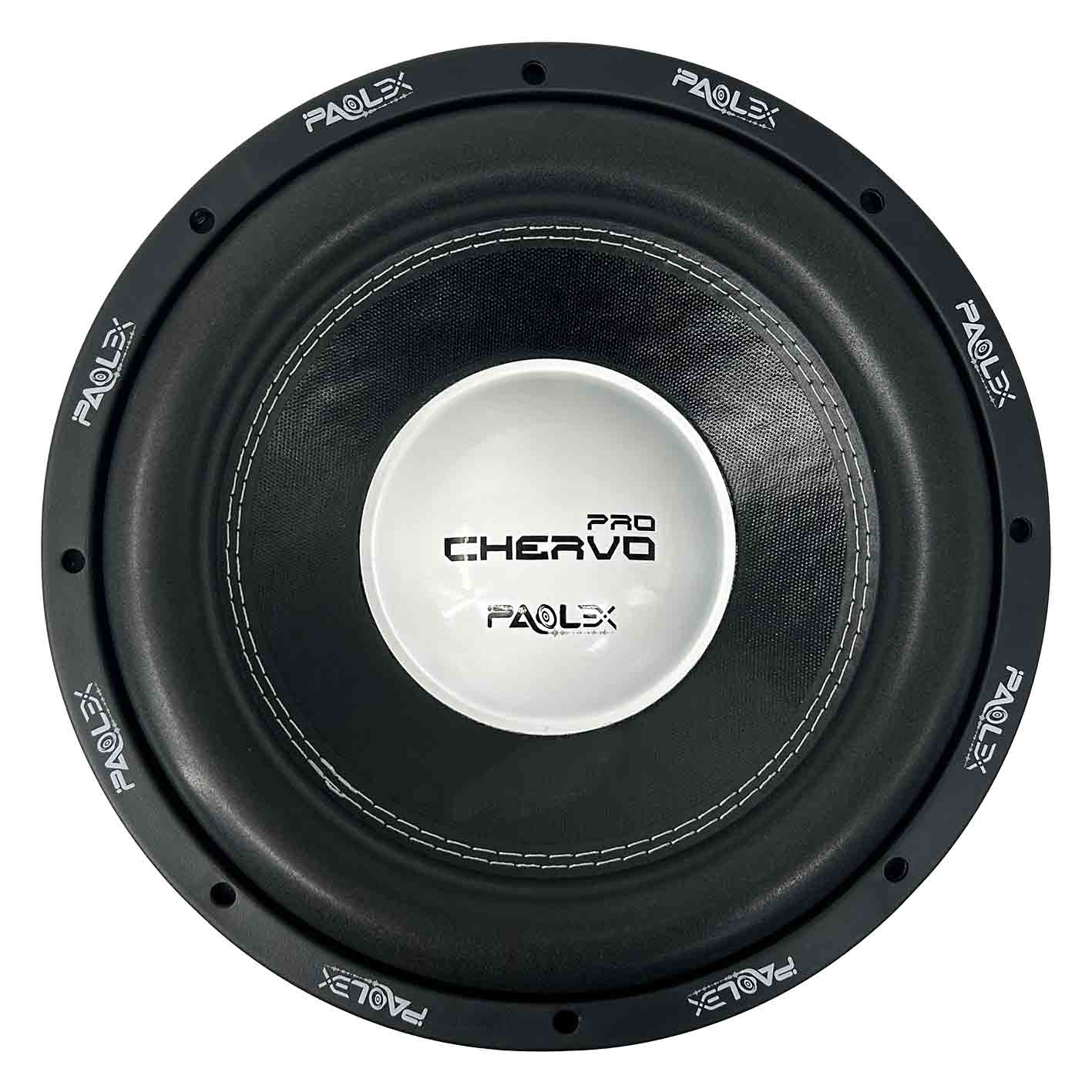

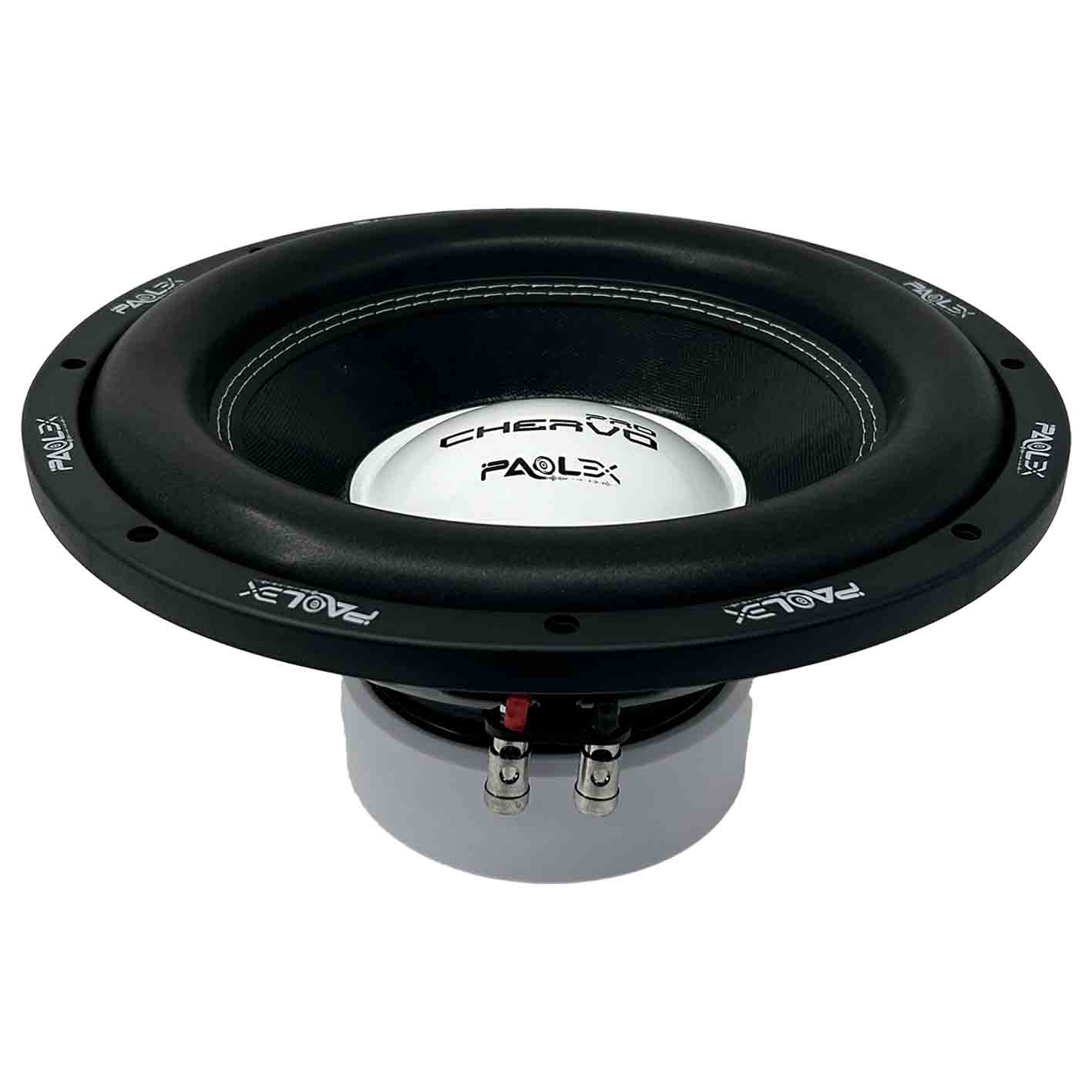

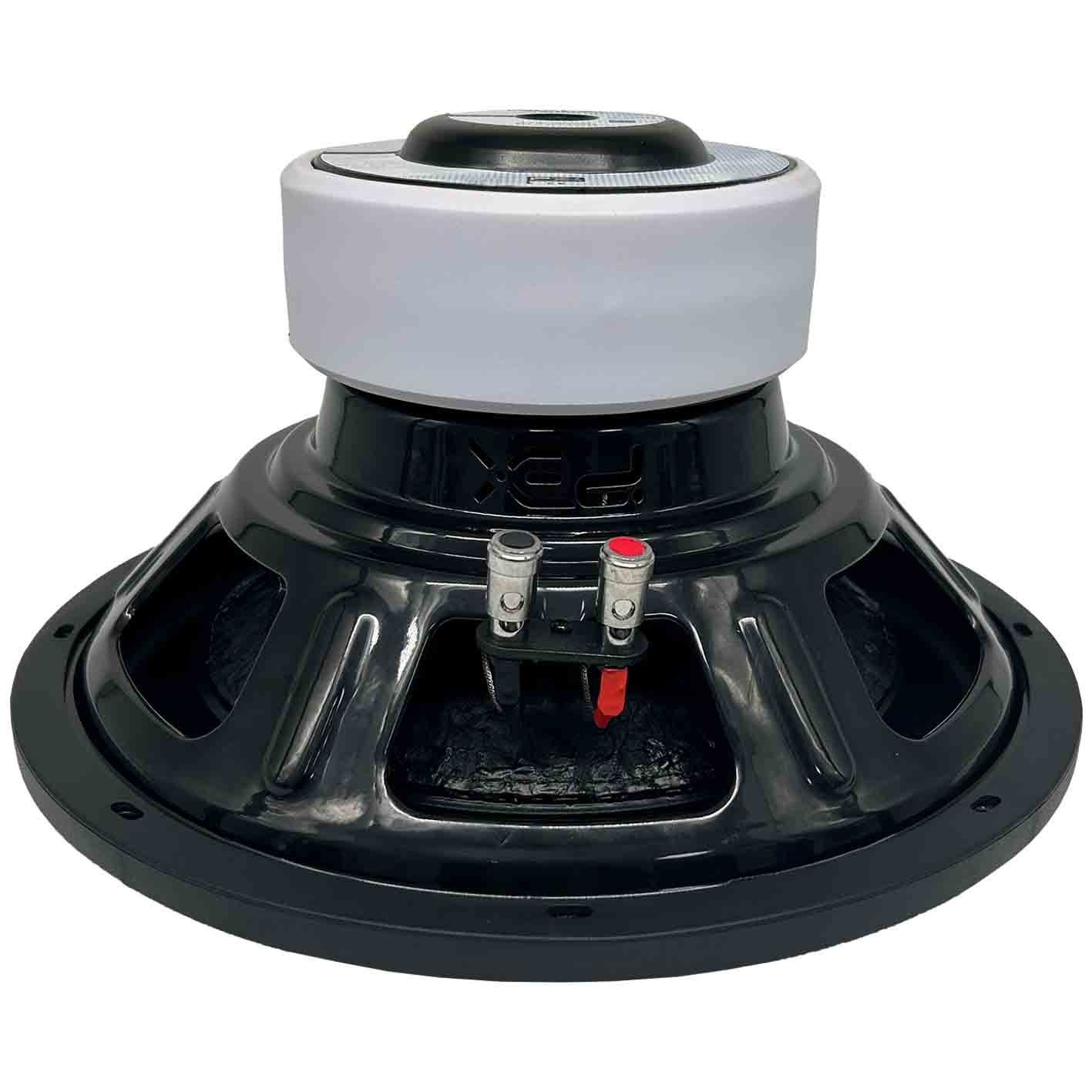

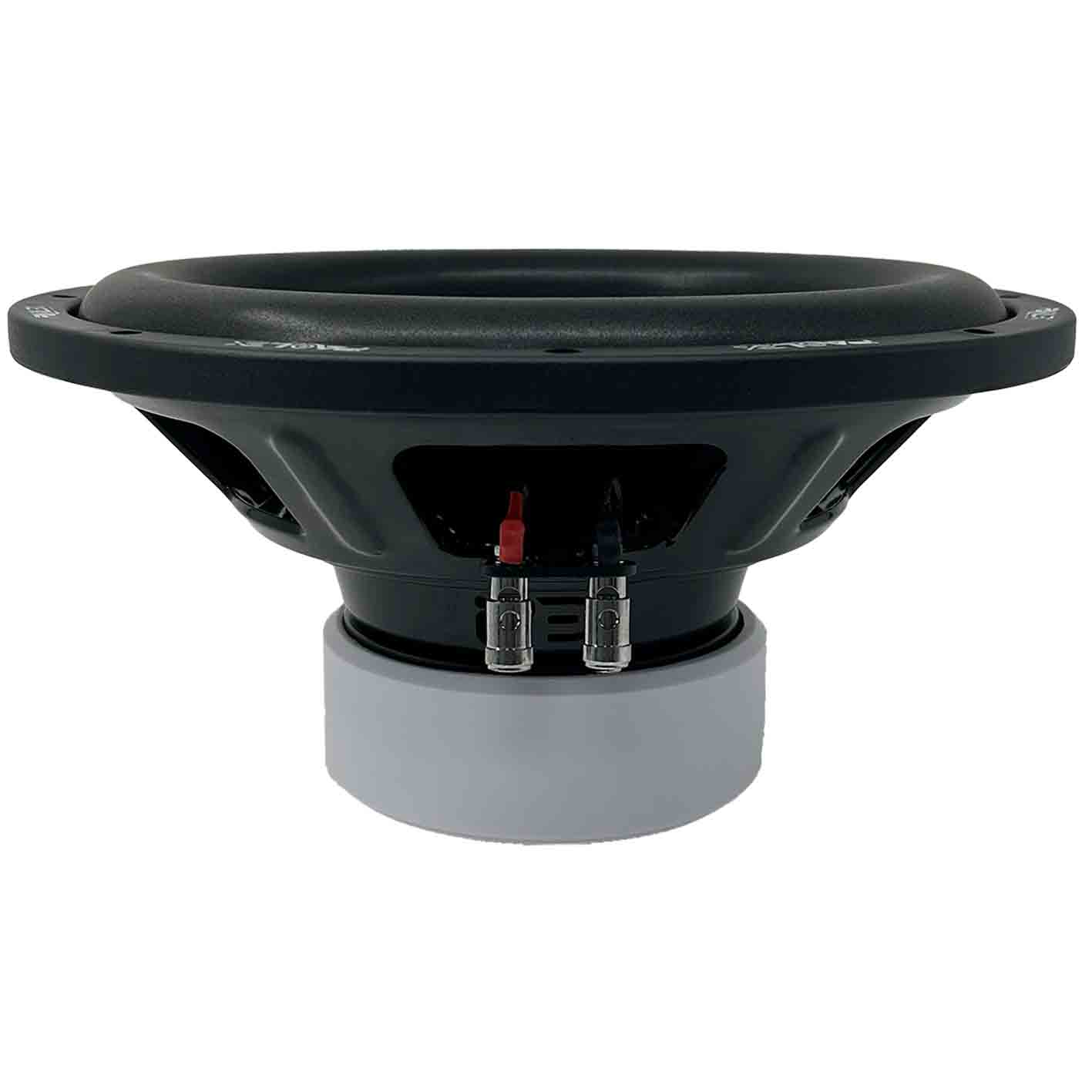

Chervo 12-500

12INCH SUBWOOFER

Specifications

Overall Dimensions

315x175mm

Nominal Power Handing

500w

Maximum Power

1000w

Sensitivity

89.4dB

Frequency Response

35-900KHz

Cone Material

PAPER CONE

Net Wieght

5.8kg

Electrical Data

Nominal Impedance

2+2Ohm

DC Resistance

2+2Ohm

Voice Coil Diometer

HE Magnetic Gap Height

8mm

Voice Coil Bobbin

BAL

Voice Coil Wire

PI

Number of Layers

4

Magnet System Type

High Flux Ferrite

T-S Parameters

Suspension Compllance

0.1864Cms

Mechanical Q Factor

9.8939Qms

Electrical Q Factor

1.0048Qes

Total Q Factor

0.9122Qts

Moving Mass

9.2929Mms

( Eq Cas Air Load ( Liters

5.1756Vas

Resanant Frequency

120Fs

Effective Piston Area

0.0141SD
