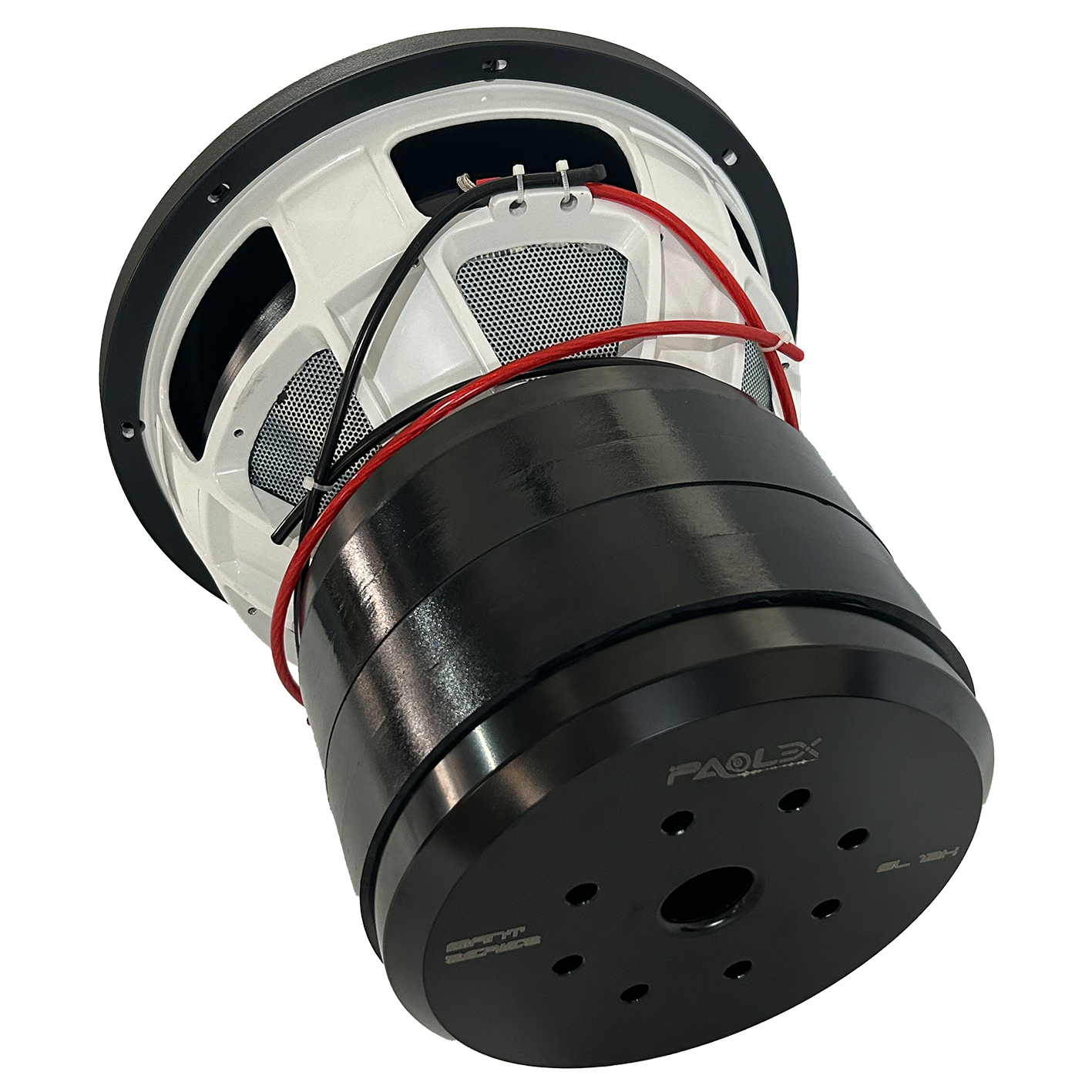

Giant 12-3000

12INCH SUBWOOFER

Specifications

Overall Dimensions

320x325mm

Nominal Power Handing

3000w

Maximum Power

6000w

Sensitivity

84dB

Frequency Response

32-1100KHz

Cone Material

PAPER CONE

Net Wieght

34.3kg

Electrical Data

Nominal Impedance

2+2Ohm

DC Resistance

2+2Ohm

Voice Coil Diometer

99.8mm

HE Magnetic Gap Height

30mm

Voice Coil Bobbin

BAL

Voice Coil Wire

-

Number of Layers

8

Magnet System Type

High Flux Ferrite

T-S Parameters

Suspension Compllance

7.4926Cms

Mechanical Q Factor

12.34Qms

Electrical Q Factor

1.2Qes

Total Q Factor

1.09Qts

Moving Mass

2.0833Mms

( Eq Cas Air Load ( Liters

1934.97Vas

Resanant Frequency

40.28Fs

Effective Piston Area

4.30E+02SD

All eyes are on this voice
