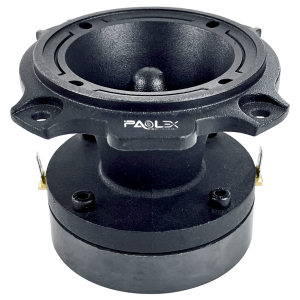

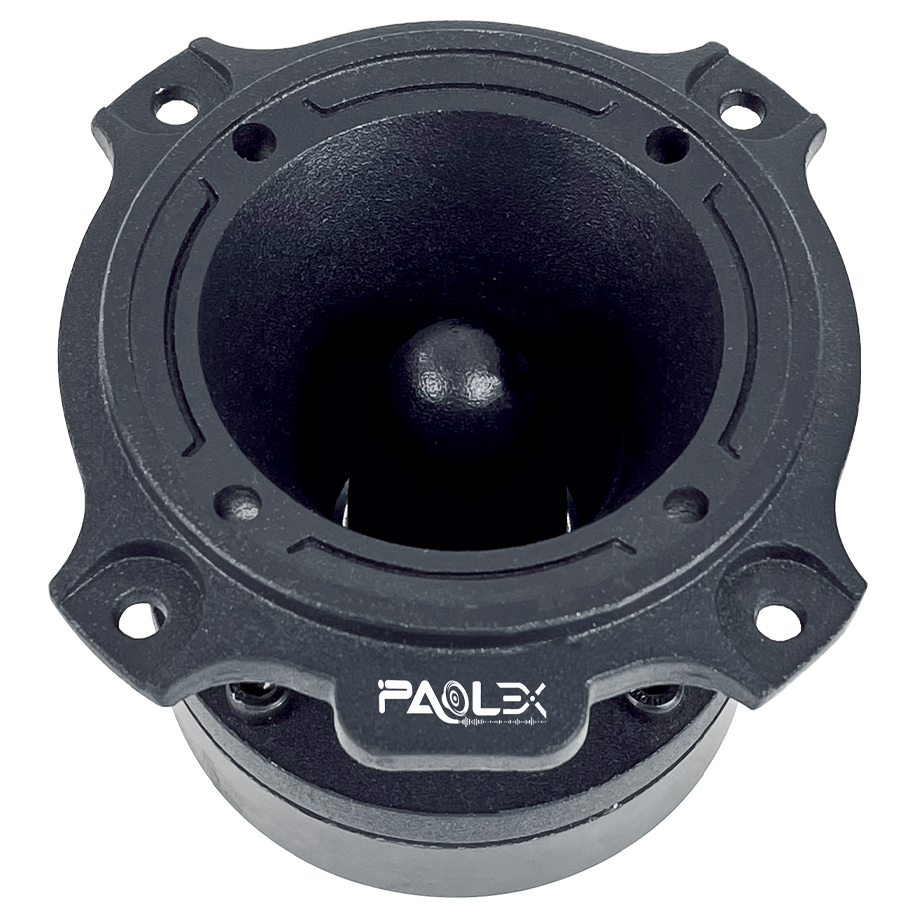

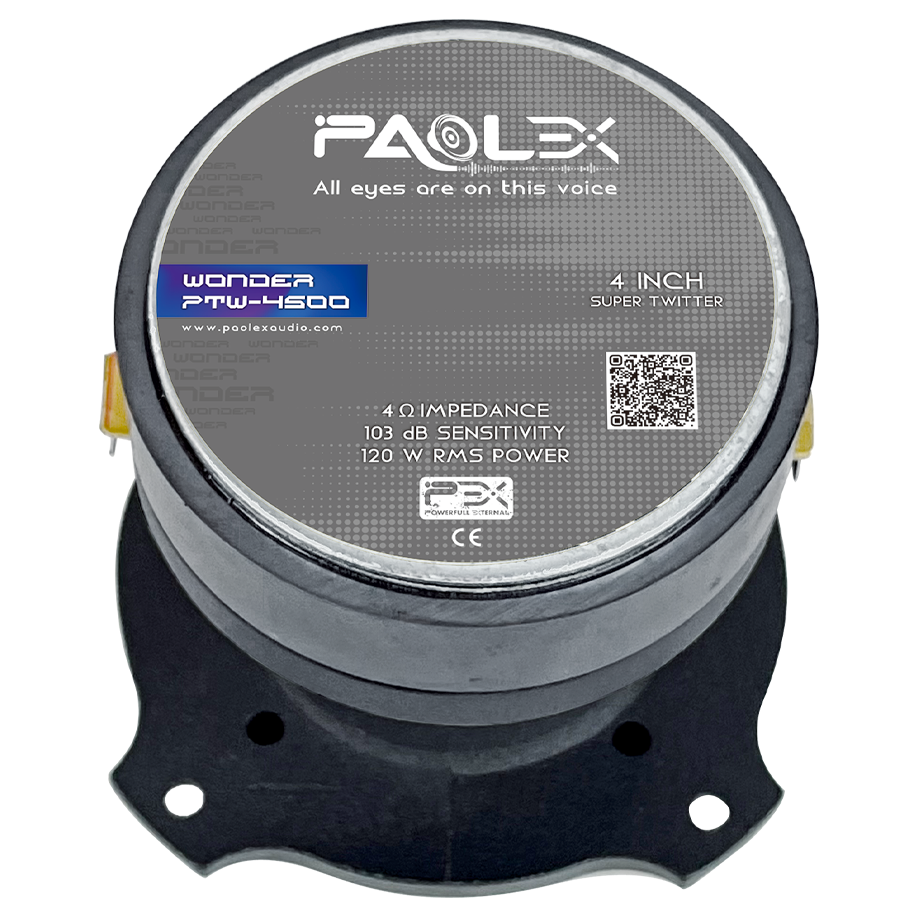

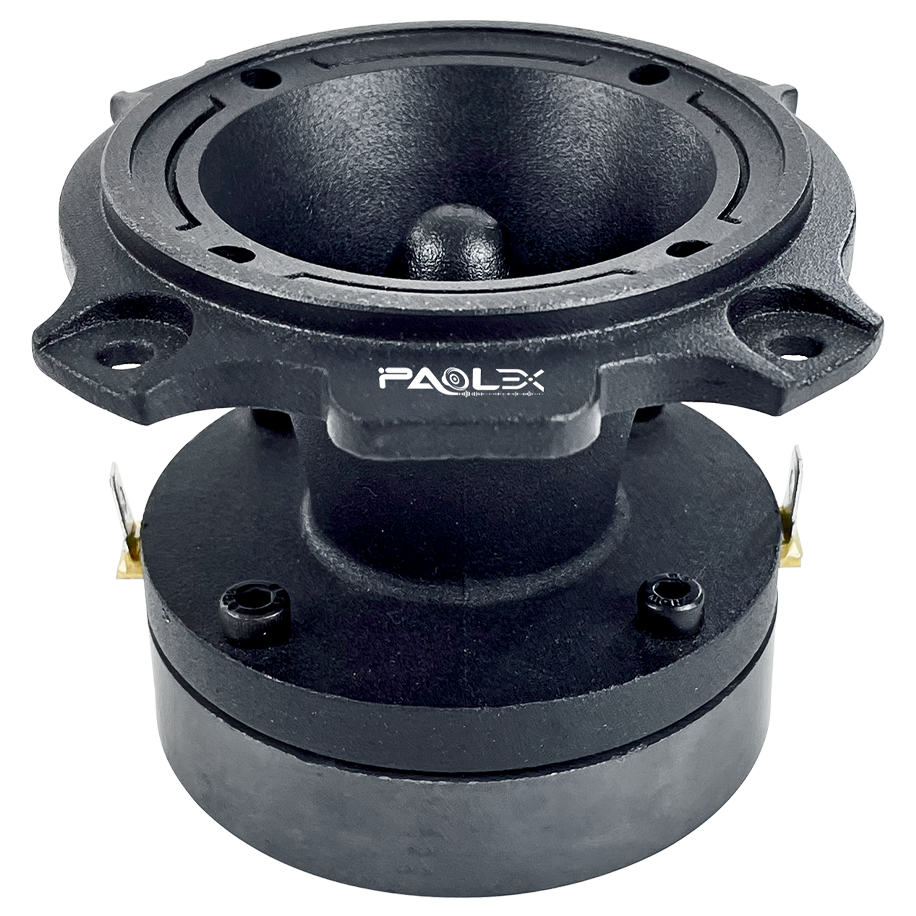

سوپر توییتر PTW4500

4PRO BULLET TWEETER

Specifications

Overall Dimensions

68*80 mm

Nominal Power Handing

120w

Maximum Power

240w

Sensitivity

103dB

Frequency Response

5-20KHz

Cone Material

Aluminum

Net Wieght

0.55kg

Electrical Data

Nominal Impedance

40hmOhm

DC Resistance

3.20hmOhm

HE Magnetic Gap Height

3mm

Voice Coil Bobbin

KAPTON

Voice Coil Wire

SV

Number of Layers

2

Magnet System Type

High Flux Ferrite

T-S Parameters

Suspension Compllance

Mechanical Q Factor

Electrical Q Factor

Total Q Factor

Moving Mass

( Eq Cas Air Load ( Liters

Resanant Frequency

Effective Piston Area

All eyes are on this voice
